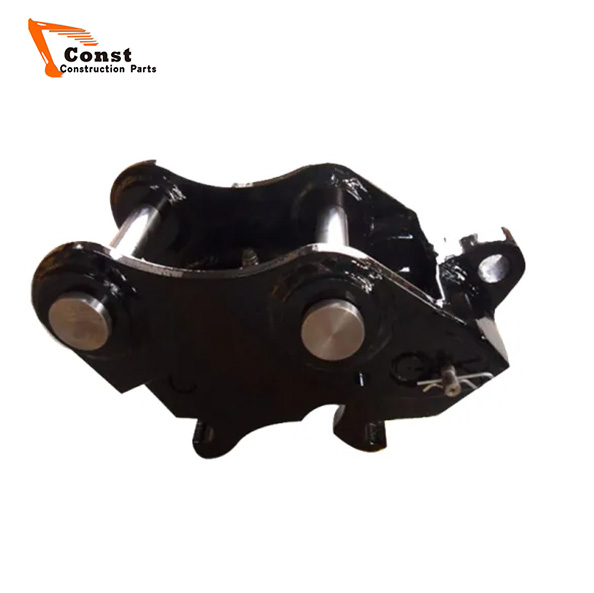

quick coupler 8.jpg

quick coupler 9.jpg

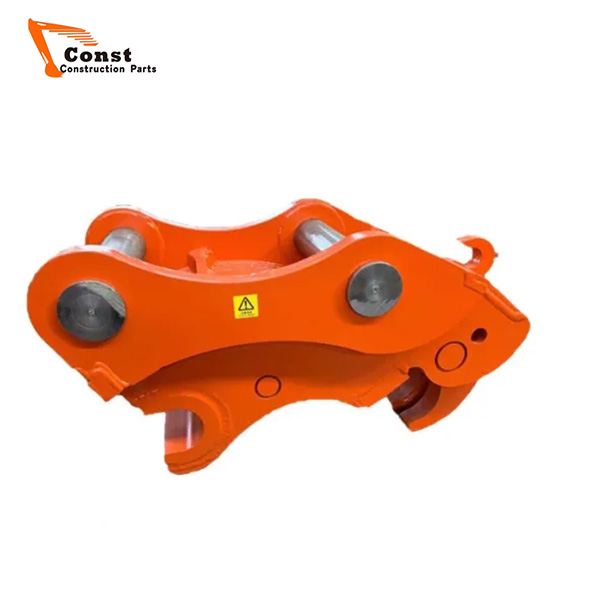

quick coupler 11.jpg

Quick Hitch Coupler

Const (Shenzhen) Trade CO.,Ltd is located in Hefei, Anhui Province. As general agency of Hitachi excavator in Hubei province of China, we are professional in excavators and its spare parts supplying and maintenance for more than 15 years.

PRODUCT DETAILS

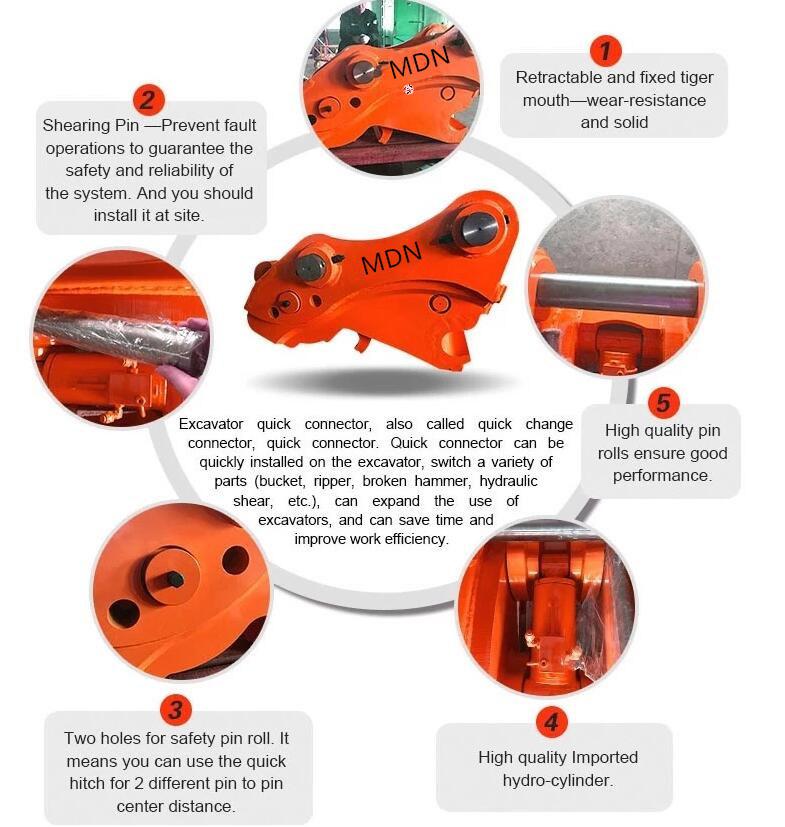

The quick coupler greatly improves the performance of the excavator. After assembling the quick coupler, it can quickly connect various excavator attachments such as buckets, rippers, hydraulic breakers, grabs, hydraulic shears, etc.

FEATURES

Excavator Hydraulic Quick Couplers: Driven by a hydraulic system, Const hydraulic quick coupler makes excavator attachments switch automatically.
Excavator Manual Quick Couplers: Working like bolt and nut, Const mechanical quick coupler switches attachments manually.

undefined

SPECIFICATION


Items	Unit	CST MINIK	CST 60K	CST 80K	CST 150K	CST 200K	CST 300K	CST 400K
Overall Length	mm	388	534-454	600	765	924-944	983-1050	1006-1173
Overall Height	mm	246	307	310	388	492	574	558-610
Overall Width	mm	175	258-263	270-280	353-436	449-483	543-568	606-663
Pin to Pin Center Distance	mm	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Forearm Open Width	mm	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Retractable Distance of Oil Cylinder	mm	170-206	205-275	340-450	340-486	256-390	413-590	520-590
Top to Bottom Pin Distance	mm	159	195	195	220	275	300	360
Pin Diameter	mm	25-40	40-50	50-55	60-70	70-80	80-90	90-120
Weight	kg	25	50-60	80	120-130	280-290	420-430	450-480
Working Pressure	kg/cm2	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Required Oil Flow	L/min	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Excavator Weight	ton	1.5-4	4-7	5-8	9-19	17-23	23-30	33-45
