Side Type
Const (Shenzhen) Trade CO.,Ltd is located in Hefei, Anhui Province. As general agency of Hitachi excavator in Hubei province of China, we are professional in excavators and its spare parts supplying and maintenance for more than 15 years.
- PRODUCT DETAILS
Simple and reliable design can suit for excavator very well. High-efficiency of hydraulic system with strong impact power. Easy maintenance with half-open frame structure.
| Side Type Hydraulic Breakers for Excavators | ||||||||
| Model No. | Operating Weight | Excavator Weight | Working Flow Rate | Working Pressure | Impact Rate | Chisel Diameter | Bucket Capacity | Height |
| kg | ton | L/min | bar | bpm | mm | m3 | mm | |
| Light Type Hydraulic Breakers | ||||||||

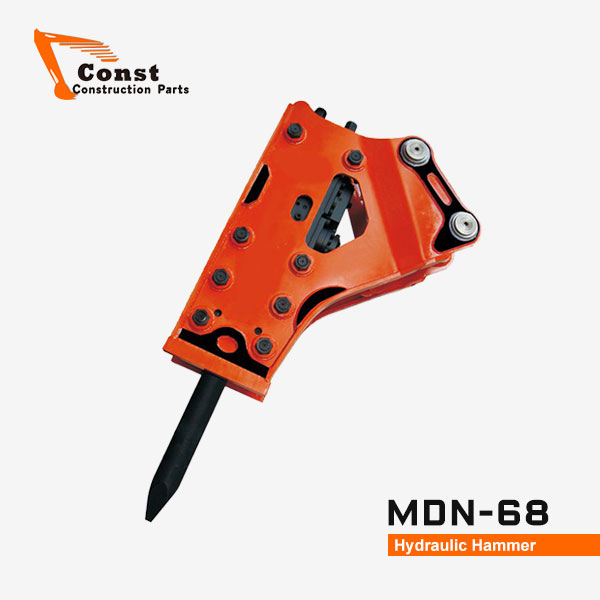

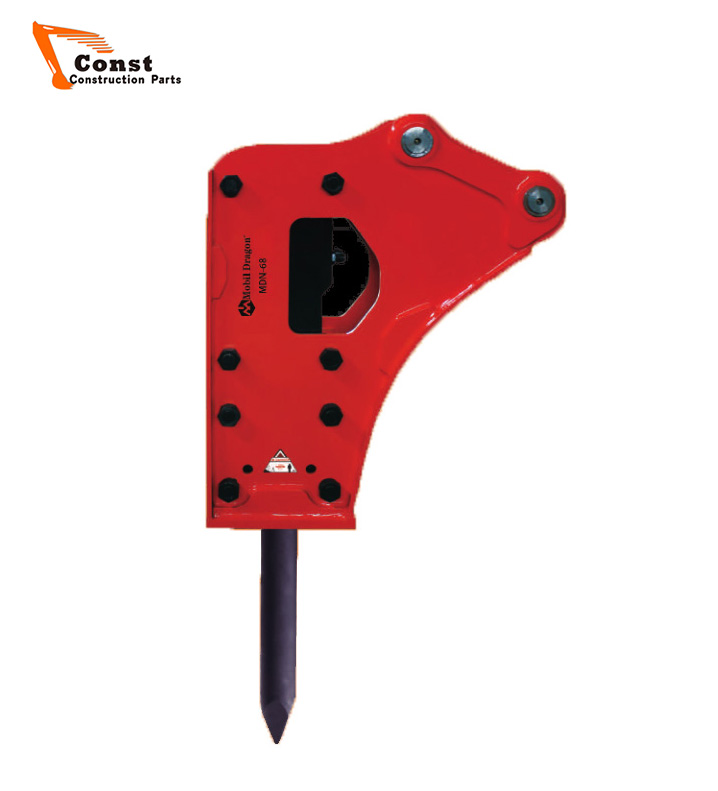

| MDN68 | 250 | 4-7 | 40-70 | 110-140 | 500-900 | 68 | 0.15-0.3 | 1330 |
| MDN75 | 380 | 6-9 | 50-90 | 120-150 | 400-800 | 75 | 0.2-0.35 | 1699 |
| MDN85 | 510 | 7-14 | 60-100 | 130-160 | 400-800 | 85 | 0.25-0.5 | 1767 |
| MDN100 | 765 | 11-16 | 80-110 | 150-170 | 350-700 | 100 | 0.4-0.6 | 1939 |
| Medium Type Hydraulic Breakers | ||||||||
| MDN135 | 1462 | 16-21 | 100-150 | 160-180 | 350-600 | 135 | 0.6-0.8 | 2289 |
| MDN140 | 1740 | 18-26 | 120-180 | 160-180 | 350-500 | 140 | 0.7-0.9 | 2414 |
| Heavy Type Hydraulic Breakers | ||||||||
| MDN155 | 2413 | 28-35 | 160-180 | 160-180 | 300-450 | 155 | 1.1-1.4 | 2776 |
| MDN165 | 2650 | 30-45 | 200-260 | 160-180 | 250-400 | 165 | 1.2-1.7 | 2919 |
| MDN175 | 3788 | 40-55 | 210-290 | 160-180 | 200-350 | 175 | 1.4-2.0 | 3189 |
FEATURES OF OUR HYDRAULIC BREAKERS
1. New Mobil Dragon series became lighter, stronger and more powerful than ever.
2. Enlarged the diameter of T/Bolt improved its durability.
3. Switched box housing to bending design for more durability.
4. Redesigned chisel pin has improved durability.
5. Enlarged chisel's diameter improved more powerful impact.
6. High energy and impact frequency (high performance).
7. High-performance optimized hydraulic unit.
8. Low maintenance, less down, long using life.
2. Enlarged the diameter of T/Bolt improved its durability.
3. Switched box housing to bending design for more durability.
4. Redesigned chisel pin has improved durability.
5. Enlarged chisel's diameter improved more powerful impact.
6. High energy and impact frequency (high performance).
7. High-performance optimized hydraulic unit.
8. Low maintenance, less down, long using life.
ADVANTAGES
1.Suitable for all models of excavator, skid steer loader and backhoe loader.
2.We will make or design hydraulic breakers as customer requests.
3.Because we are a manufacture and trading company ,the highest quality, competitive price and a perfect after-sales service should be provided to our customers.
4 High Strength and wear resistance steel plate adopted.
5. First-class quality: Korean technology used to guarantee the quality.
2.We will make or design hydraulic breakers as customer requests.
3.Because we are a manufacture and trading company ,the highest quality, competitive price and a perfect after-sales service should be provided to our customers.
4 High Strength and wear resistance steel plate adopted.
5. First-class quality: Korean technology used to guarantee the quality.

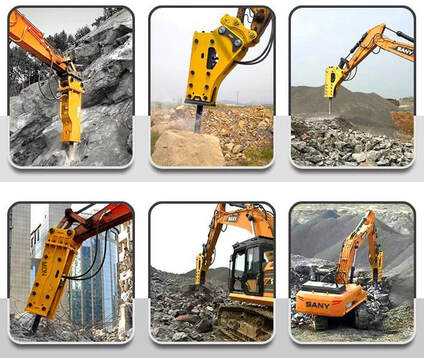

APPLICATION
Mining: Mining, second-time breaking;
Metallurgy: Clearing slag, Demolition of furnace and foundation;
Road: Repairing, Breaking, Foundation work;
Railway: Tunneling, Demolition of bridge;
Construction: Demolition of building and reinforced concrete;
Ship repairing: Clearing clam and rust from the hull;
Others: Breaking Frozen mud.
Metallurgy: Clearing slag, Demolition of furnace and foundation;
Road: Repairing, Breaking, Foundation work;
Railway: Tunneling, Demolition of bridge;
Construction: Demolition of building and reinforced concrete;
Ship repairing: Clearing clam and rust from the hull;
Others: Breaking Frozen mud.
STANDARD CONFIGURATIONS

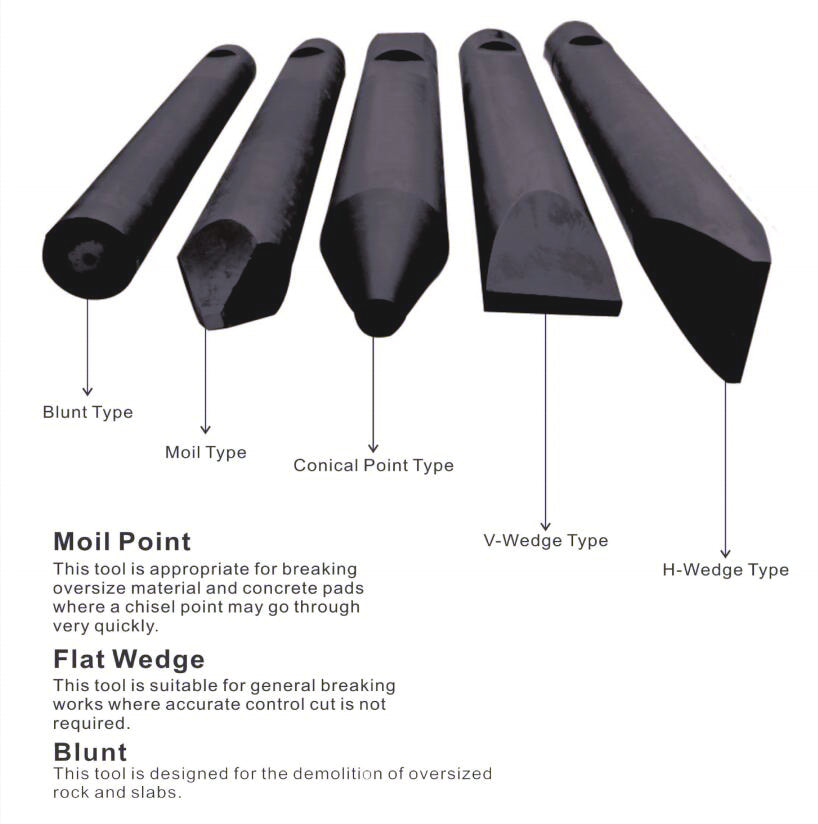

1. Chisel * 2pcs;
2. Hydraulic Oil Hose * 2pcs;
3. Nitrogen Charging Kit with Pressure Gauge * 1 Set;
4. Nitrogen Bottle * 1pc;
5. Tool Box With Necessary Maintenance Tools * 1 Set;
6. User Manual * 1 pc.
2. Hydraulic Oil Hose * 2pcs;
3. Nitrogen Charging Kit with Pressure Gauge * 1 Set;
4. Nitrogen Bottle * 1pc;
5. Tool Box With Necessary Maintenance Tools * 1 Set;
6. User Manual * 1 pc.

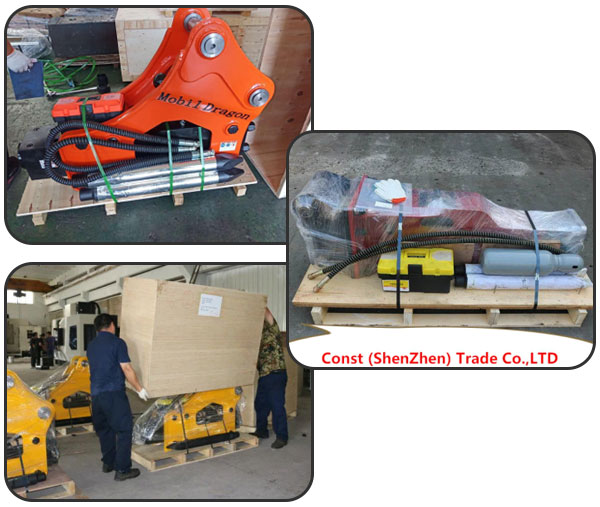

PACKAGE
1. Inner is stretch film;
2. Outside is export wooden case;
3. As per customer's request.
2. Outside is export wooden case;
3. As per customer's request.
